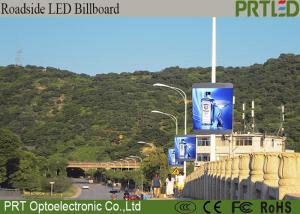

Intelligent Wifi 3G Outdoor LED Billboard P6 Full Color For Road Pole

Product Categories

PRT OPTOELECTRONIC CO.,LTD

Contact Now

Brand Name : PRT

Model Number : P6

Certification : CE ROHS FCC

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 pcs

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 20 work days

Packaging Details : wooden case( one in one)

Product name : LED Street Pole Display

LED type : SMD3535 1R1G1B

Cabinet material : Iron or aluminum

Screen size : customized

Brightness : 5500 nits

Usage : Outdoor advertising

Contact Now

Wifi 3G intelligent management P 6 outdoor street lighting pole led billboard

Product Featurers:

1. Innovative Design, Elegant appearance, with acrylic and Aluminum alloy material.

2. High brightness, anti-sunshine, Anti-dust and waterproof. Used for outdoor.

3. Easy installation, can be hanging , side mount and pretended installation.

4. Dynamic display, animation , pictures, etc.

5. Single and double sided display.

6. Synchronization and asynchronous control, also can be controled by Mobile phone.

Trade terms:

1. M.O.Q: 1 sq.m.

2. Payment: T/T or discussed

3. Payment Term: FOB, EXW or according to your requirements.

4. Packing: Wooden case, cartons, flight case or according to your requirements.

5. Shipping: By air, by sea, by land, by express or according to your requirements.

6. Delivery Time: 10~15 working days.

Parameter for reference are as below!

Outdoor P5 full color led display for pole
Characteristics	Value	unit
Pixel pitch	6	mm
LED type	SMD3535
Pixel density	27777	Dots/sq.m
Module size	192 x 192	mm
Module resolution	32x32	dots
Cabinet size	768x1600	mm
Display size	768 x1152	mm
Cabinet resolution	128x192	dots
Cabinet weight	57	Kgs
Waterproof IP	65	degree
Brightness	≥5000	CD/M2
View angle	120°	degree
Gray scale	13	Bit
Display scale	16.7	Million
Power consumption(Max.)	800	W/sq.m
Power consumption(Avg.)	280	W/sq.m
Refresh Frequency	≥960	Hz
Operation Power	AC100~240	V
Operationg Temperature	-20~+50	ºC
Operating Humidity	10~90%	RH
Operating Life	100,000	Hours

Product Tags:

street pole advertising display
